8R82 | pdb_00008r82

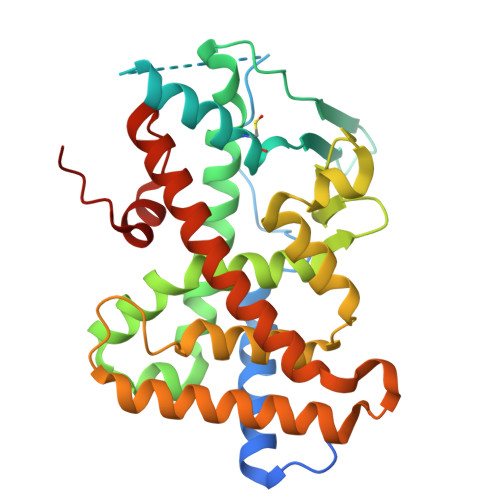

Crystal structure of the hPXR-LBD in complex with compound JMV6944

PDB DOI: https://doi.org/10.2210/pdb8R82/pdb

Classification: GENE REGULATION
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2023-11-27 Released: 2025-06-11
Deposition Author(s): Delfosse, V., Bourguet, W.
Funding Organization(s): Agence Nationale de la Recherche (ANR)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.10 ?
R-Value Free:
0.236 (Depositor), 0.236 (DCC)
R-Value Work:
0.194 (Depositor), 0.194 (DCC)
R-Value Observed:
0.196 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of the hPXR-LBD in complex with compound JMV6944

Delfosse, V., Bourguet, W.

To be published.

Macromolecule Content

Total Structure Weight: 37.74 kDa
Atom Count: 2,390
Modeled Residue Count: 278
Deposited Residue Count: 320
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Nuclear receptor subfamily 1 group I member 2	A	320	Homo sapiens	Mutation(s): 0 Gene Names: NR1I2
UniProt & NIH Common Fund Data Resources
Find proteins for O75469 (Homo sapiens) Explore O75469 Go to UniProtKB: O75469
PHAROS: O75469 GTEx: ENSG00000144852
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	O75469
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
Y7Q (Subject of Investigation/LOI) Query on Y7Q Download Ideal Coordinates CCD File SDF format, chain H [auth A] MOL2 format, chain H [auth A] mmCIF format, chain H [auth A]	H [auth A]	~{N}-[2-(7-azanylheptyl)-1-(phenylmethyl)benzimidazol-5-yl]-2,4,6-trimethyl-benzenesulfonamide C₃₀ H₃₈ N₄ O₂ S WNZAHNXQYIIBNB-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Interactions & Density Focus chain H [auth A]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A]	C [auth A], D [auth A], E [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A]
EDO Query on EDO Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A]	F [auth A], G [auth A]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Interactions & Density Focus chain F [auth A] Focus chain G [auth A]
IPA Query on IPA Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	ISOPROPYL ALCOHOL C₃ H₈ O KFZMGEQAYNKOFK-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
